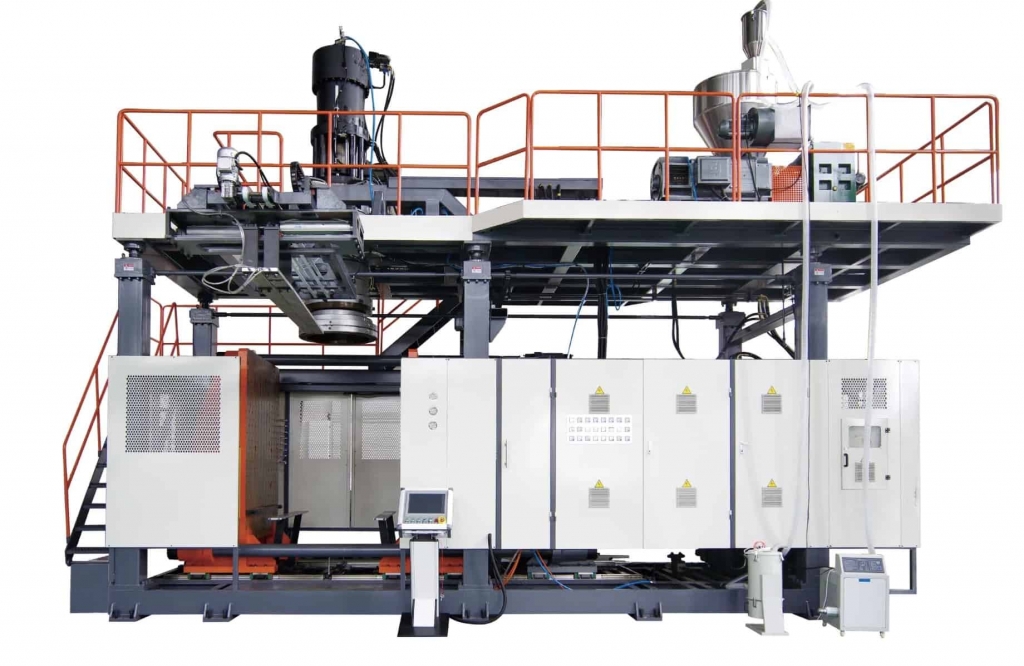

500/1000 Pallet Blow Molding Machine

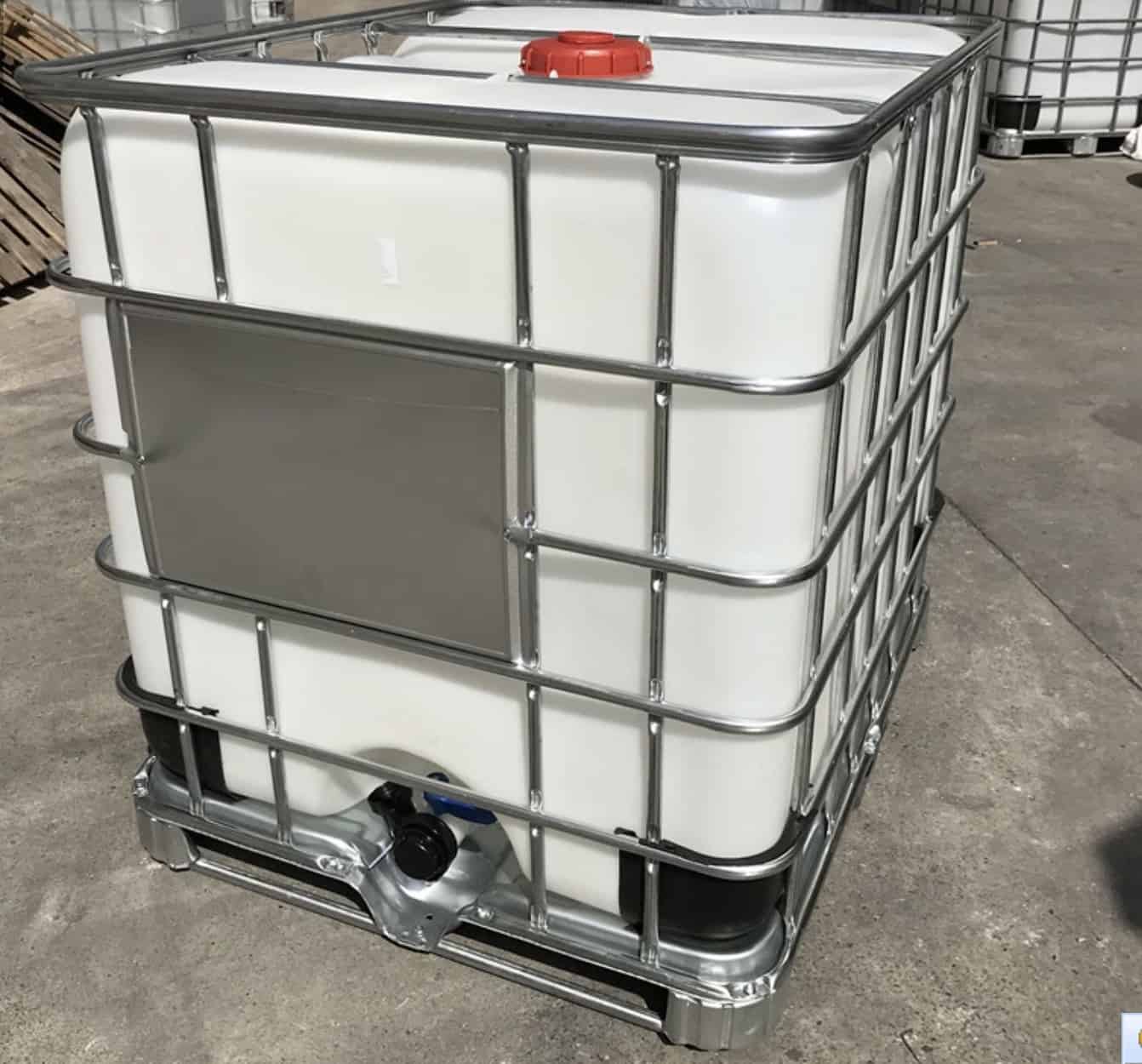

  • Suitable for producing 500-1000L big size Chemical revolving barrel.
  • Adopt high output extrusion system,accumulating type die head,hydraulic servo control system.
  • Port: Shanghai, China
  • International Commercial Terms(Incoterms): FOB, CFR, CIF, EXW
  • Terms of Payment: LC, T/T
  • Certification: CE, ISO, UL, QS, GMP
  • Warranty: 1 Year
  • Average Lead Time: Peak season lead time: 3-6 months, Off season lead time: 1-3 months

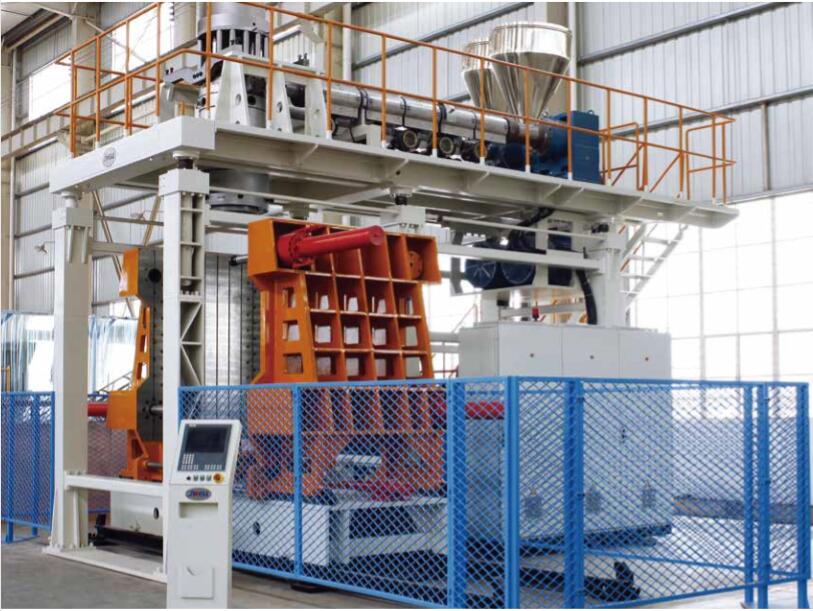

JWZ-BM30/50/100/160 Pallet Blow Molding Machine

500/1000 Blow Molding Machine

Pallet Blow Molding Machine Performance and advantages

  • Suitable for producing different kinds of pallets, car urea boxes, toolboxes, automotive seats, auto air ducts, auto flow boards, bumper,s and Car Spoilers.
  • Adopt high output extrusion system, accumulating die head.
  • According to the different material, optional JW-DB single station hydraulic screen-exchanger system.
  • According to the different product sizes, customized the platen type and size.
  • Optional hydraulic servo control system.
  • Optional bottom sealing,take-out robot.
take out robot
pallet

Technical parameters

Model Unit BM30 BM50 BM100 BM160
Max product volume L 30 50 100 160
Dry cycle Pc/h 600 450 360 300
Die head structure Accumulating Type Accumulating Type Accumulating Type Accumulating Type Accumulating Type
Main screw diameter mm 80 90 100 100
Max plasticizing capacity (PE) kg/h 120 180 190 240
Driving motor Kw 37 45 55 90
Accumulating volume L 5.2 6.2 12.8 18
Oil pump motor power Kw 15 18.5 22 22
Clamping force KN 280 400 600 800
Space between platen mm 400-900 450-1200 500-1300 500-1400
Platen size W*H mm 740*740 880*880 1020*1000 1120*1200
Max.mould size mm 550*650 700*850 800*1200 900*1450
Heating power of die head Kw 20 28 30 30
Machine dimension L*W*H m 4.3*2.2*3.5 5.6*2.4*3.8 5.5*2.5*4.0 7*3.5*4
Machine weight T 12 13.5 16 20
Total power Kw 95 110 135 172

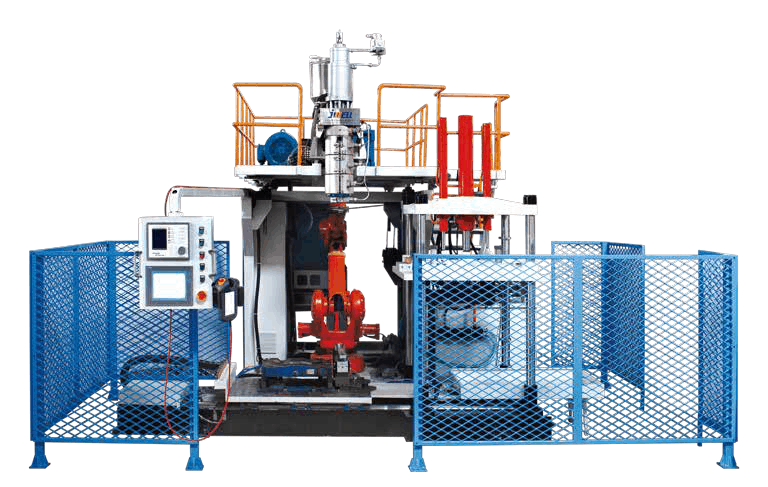

JWZ-BM3D-1000 Three-dimensional Blow Molding Machine Applications

  • Suitable for producing different Car shaped pipe fittings products, like the automotive oil filler pipe, air ducts pipe, and others.
  • Finished product less or without scrap for strong strength.
  • Adopt high output extrusion system, accumulating die head.

Technical Parameters

Model Unit BM3D-1000
Dry cycle Pc/h 180
Die head structure Accumulating type Accumulating type
Main screw diameter mm 65
Max plasticizing capacity (PE) kg/h 70
Driving motor Kw 22
Accumulating volume L 2.5
Oil pump motor power Kw 15
Clamping force KN 75
Space between platen mm 300-1100
Platen size W*H mm 800*1200
Max.mould size mm 600*1100
Platen moving stroke mm 1800
Heating power of die head Kw 10.7
Machine dimension L*W*H m 5.4*4.3*3.4
Machine weight T 10.5
Total power Kw 63
air ducts pipe
air ducts pipe
Car shaped pipe fittings
Car shaped pipe fittings

FAQ

  • International Commercial Terms(Incoterms): FOB, CFR, CIF, EXW
  • Terms of Payment: LC, T/T
  • Average Lead Time: Peak season lead time: 3-6 months, Off season lead time: 1-3 months
  • Number of Foreign Trading Staff:>50 People

Yes, We own 5 manufacturing bases and sales center in Shanghai , Suzhou ,Changzhou, Zhou Shan, Dongguan China.
Jwell made the first Chinese screw and barrel in 1978 in brand name Jinhailuo.After more than 40 years development,
JWELL is one of the biggest extrusion machine supplier in China with 300design&test engineer, 3000 employees.
Jwell has become the premier supplier of extrusion lines and reliable business partners. Welcome to drop in us.

Our machines taking the European standards and follow the Germany type of business, we cooperation with
International famous brands Siemens Schneider Flender Omron ABB WEG Falk Fuji etc. Our company continuously
imports over 1000 international first-class high precision processing equipment such as multistage machining centers, CNC lathes and CNC milling machines from Korea, Japan etc. All our processes strictly adhere to CE certification,
IS09001 and 2008 quality management system . And we have 12 months quality warranty time. We testing the
machine performances before each delivery. Jwell service engineers will always be here for anything you needed.

Usually it takes about 1 – 4 months depends on different machinery upon receipt of order advance payment.

Once clear your requirements and determined extrusion line is ideal for you. We will send technical solutions and
Proforma Invoice to you. You can pay via TT bank transfer, LC as you like.

One. We provide both customized extrusion lines and technical solutions. Welcome contact with us for technical
innovation or improvements for your future purchasing plan.

We produce more than 2000 advanced extrusion lines every year world wide.

We can send the small spare parts by air express for urgent matter. And the complete production line by sea
to save the cost. You can either use your own assigned shipping agent or our cooperative forwarder. The nearest
port is China Shanghai, Ningbo port, which is convenient for maritime transportation..

Yes, we support our business partners by pre-after sale service. Jwell has more than 300 technical testing
engineers traveling world wide. Any cases would be responded with prompt solutions. We provide training, testing,
operation and maintenance service for a life time.
