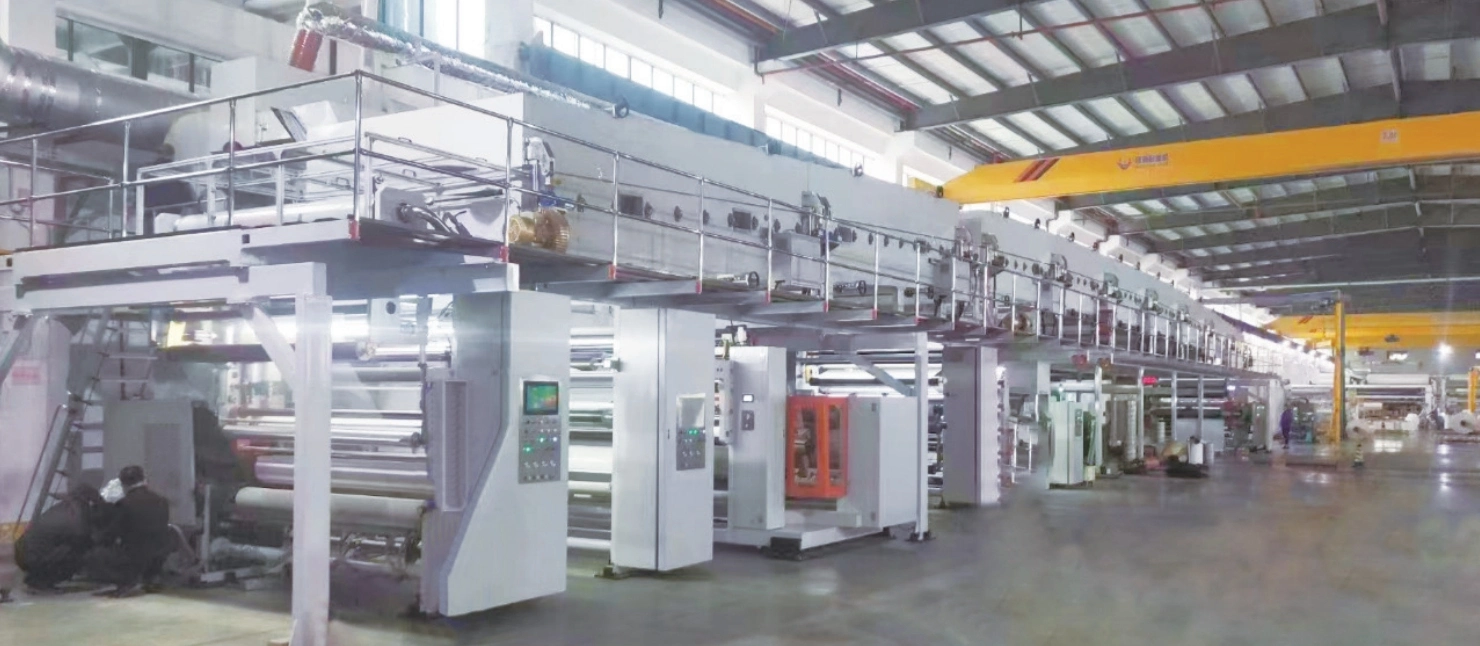

Functional Packaging Coating Production Line

high-temperature retort pouch food packaging;ambient-temperature barrier food packaging;ready-to-eat puffed food packaging;ready-to-eat oily food packaging;anti-static barrier packaging for electronic products;packaging requiring oxygen, light, and moisture barrier performance. These high-barrier films serve as advanced alternatives to traditional aluminum foil structures.

Functional Packaging Coating Production Line

Application Fields

high-temperature retort pouch food packaging;ambient-temperature barrier food packaging;ready-to-eat puffed food packaging;ready-to-eat oily food packaging;anti-static barrier packaging for electronic products;packaging requiring oxygen, light, and moisture barrier performance. These high-barrier films serve as advanced alternatives to traditional aluminum foil structures.

Performance

◎Supports multiple coating methods including reverse gravure coating, anilox roll direct coating, and multi-roll precision metering coating units, covering approximately 90% of the process routes used in high-barrier film production.

◎Achieves micron-level wet coating thickness, with coating uniformity deviation within 5%, depending on the specific coating process.

◎The drying tunnel is engineered for high efficiency and energy saving, ensuring optimal thermal performance.

◎Integrated fully closed-loop tension control system for stable and precise material handling throughout the production line.

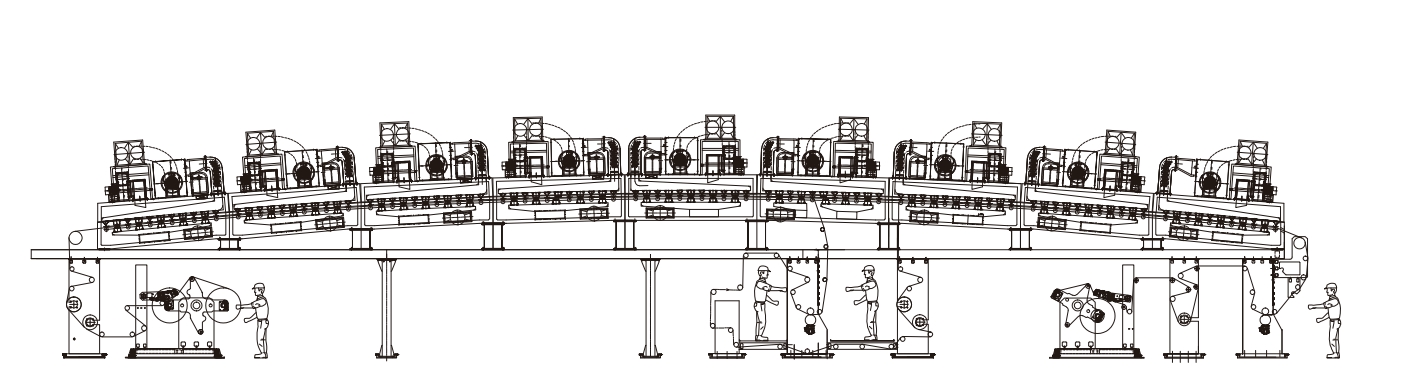

Functional Packaging Coating Production Line

Main technical parameters

Substrate types BOPET、BOPP、non-woven fabrics, fibre fabrics, paper products, etc.

BOPET, BOPP, non-woven fabric, fiber cloth, paper and similar materials and so on

Substrate width 800mm-2700mm
Working speed Max.400m/min(Depending on the material and manufacturing process)

Up to 400m/min (depending on material and process)

Coating methods reverse gravure coating unit; forward gravure coating unit; three-roll gravure transfer coating unit.
Laminating methods Laminating Methods: two-roll laminating; three-roll laminating, etc.
Unwinding Unit Structure type Double-station
Max roll diameter 800-1200mm
Cutting type Flying blade, gear blade
Clamping system Pneumatic fixed cone, movable open-close arm cone, air shaft
Heat source for the oven Oven heating sources available options Electric heating, steam heating, thermal oil heating, natural gas heating, hot air heating, UV curing, etc.
Rewinding Unit Structure type Dual-station (with following mechanism)
Max roll diameter 800-1200mm
Cutting type Flying blade, gear blade
Clamping system Pneumatic fixed cone, movable open-close arm cone, air shaft



FAQ

  • International Commercial Terms(Incoterms): FOB, CFR, CIF, EXW
  • Terms of Payment: LC, T/T
  • Average Lead Time: Peak season lead time: 3-6 months, Off season lead time: 1-3 months
  • Number of Foreign Trading Staff:>50 People

Yes, We own 5 manufacturing bases and sales center in Shanghai , Suzhou ,Changzhou, Zhou Shan, Dongguan China.
Jwell made the first Chinese screw and barrel in 1978 in brand name Jinhailuo.After more than 40 years development,
JWELL is one of the biggest extrusion machine supplier in China with 300design&test engineer, 3000 employees.
Jwell has become the premier supplier of extrusion lines and reliable business partners. Welcome to drop in us.

Our machines taking the European standards and follow the Germany type of business, we cooperation with
International famous brands Siemens Schneider Flender Omron ABB WEG Falk Fuji etc. Our company continuously
imports over 1000 international first-class high precision processing equipment such as multistage machining centers, CNC lathes and CNC milling machines from Korea, Japan etc. All our processes strictly adhere to CE certification,
IS09001 and 2008 quality management system . And we have 12 months quality warranty time. We testing the
machine performances before each delivery. Jwell service engineers will always be here for anything you needed.

Usually it takes about 1 – 4 months depends on different machinery upon receipt of order advance payment.

Once clear your requirements and determined extrusion line is ideal for you. We will send technical solutions and
Proforma Invoice to you. You can pay via TT bank transfer, LC as you like.

One. We provide both customized extrusion lines and technical solutions. Welcome contact with us for technical
innovation or improvements for your future purchasing plan.

We produce more than 2000 advanced extrusion lines every year world wide.

We can send the small spare parts by air express for urgent matter. And the complete production line by sea
to save the cost. You can either use your own assigned shipping agent or our cooperative forwarder. The nearest
port is China Shanghai, Ningbo port, which is convenient for maritime transportation..

Yes, we support our business partners by pre-after sale service. Jwell has more than 300 technical testing
engineers traveling world wide. Any cases would be responded with prompt solutions. We provide training, testing,
operation and maintenance service for a life time.
