Coating Die Head

Coating Die Head type

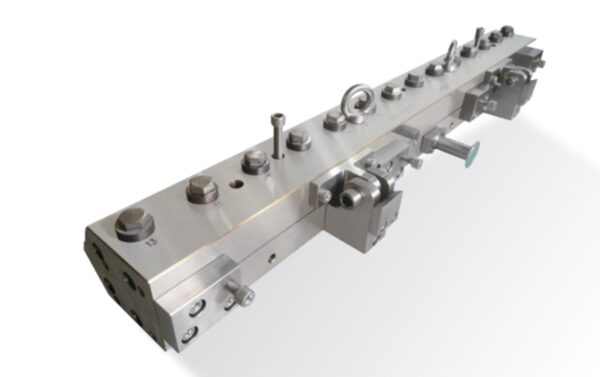

Fixed Lip Coating Die Head

◎Simple structure, low cost, and more universality;

◎Customized cavity structure, suitable for different coating fluids with different characteristics;

◎The opening of the die lip is adjusted by replacing gaskets with different thicknesses, combined with high-precision die lips, resulting in good uniformity of coating;

◎Quick opening and closing of the die structure, convenient for cleaning and maintenance.

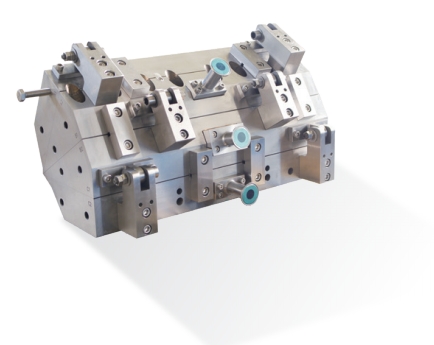

Three Layers Composite Coating Die Head

◎Three independent cavity designs that can be coated in three layers simultaneously;

◎Quickly open and close the die structure, allowing each layer to quickly open and clean the flow channel;

◎High accuracy die lip and good coating uniformity.

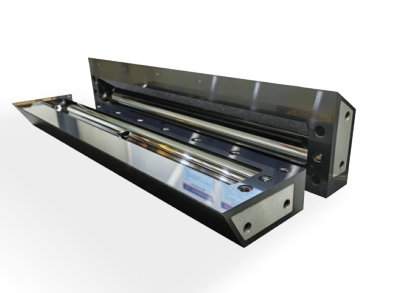

Surface Treatment (DlC Coating Treatment)

◎Super wear resistance, Vickers hardness can reach HV2000-2300;

◎Excellent lubricity, friction coefficient of 0.06-0.1, preventing adhesive wear;

◎The film thickness can be adjusted according to the size of the die head, with a thickness of 1-10um on one side and low tolerance;

◎Excellent anti-corrosion performance.

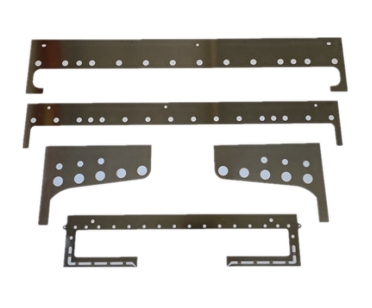

Die Head Pad

◎Adopting imported pad, low tolerance and the high precision;

◎The pad material can be selected: SUS304, 316L;

◎Different thicknesses of pad can be selected based on the coating thickness;

◎Changing the opening size of the U-shaped pat can adjust the coating width.

Applications of Coating Die Heads

Coating die heads are essential components in precision coating and lamination processes. They deliver uniform liquid or molten material onto various substrates with exceptional accuracy. They are widely used across multiple industries where consistent coating thickness and high-quality surface finishes are required.

Typical applications include:

• Lithium-ion battery electrode coating
• Fuel cell membrane coating
• Optical and protective film manufacturing
• Adhesive tape and release liner production
• Solar photovoltaic backsheet coating
• Medical film and transdermal patch manufacturing
• Flexible packaging lamination
• Paper and speciality paper coating
• Nonwoven fabric functional coating
• Hot melt adhesive application
• Waterproof membrane production
• Electronic insulation material coating
• Decorative and functional composite materials
• Research and pilot coating lines

Features of Coating Die Heads

Designed for high-precision industrial coating, our coating die heads provide excellent coating uniformity, stable operation, and flexible process compatibility.

1. High Coating Accuracy

Precision-engineered flow channels ensure uniform material distribution, producing consistent coating thickness across the full working width.

2. Excellent Surface Quality

Optimized internal manifold design minimizes flow lines and coating defects, resulting in smooth, high-quality finished products.

3. Wide Material Compatibility

Suitable for processing various coating materials, including:

• Water-based coatings
• Solvent-based coatings
• Hot melt adhesives
• UV-curable materials
• Functional slurries
• Polymer coatings
• Battery electrode pastes

4. Adjustable Coating Parameters

Flexible lip gap adjustment and precision control allow manufacturers to optimize coating thickness for different products and production requirements.

5. Durable Construction

Manufactured from high-grade alloy steel with precision machining and surface treatment to provide excellent wear resistance, corrosion resistance, and long service life.

6. Stable High-Speed Performance

The optimized flow path supports stable coating performance during continuous high-speed production while maintaining excellent coating consistency.

7. Custom Engineering Solutions

Available in multiple widths, coating methods, and customized configurations to match different coating lines, substrate materials, and production capacities.

Why Choose a Coating Die Head?

Selecting a high-quality coating die head is essential for improving product consistency, reducing material waste, and maximizing manufacturing efficiency.

1. Superior Coating Uniformity

A precision coating die delivers highly uniform coatings, improving product quality while reducing rejects and downstream processing issues.

2. Higher Production Efficiency

Stable material flow and reliable operation enable continuous production with less downtime, supporting higher throughput and lower operating costs.

3. Reduced Material Consumption

Accurate coating control minimizes excess material usage, helping manufacturers reduce raw material costs while maintaining target coating weights.

4. Broad Industrial Versatility

One coating die head can support numerous applications across battery manufacturing, electronics, packaging, medical products, new energy materials, and advanced functional films.

5. Easy Integration

Our coating die heads can be integrated into new production lines or retrofit existing coating equipment, providing flexible solutions for equipment manufacturers and industrial processors.

6. Long-Term Reliability

Manufactured with precision engineering and strict quality control, they offer dependable performance, extended service life, and low maintenance requirements, making them a cost-effective investment for high-performance coating production.
